กกSlotted Countersunk Head Screws

DIN 963

mm
Thread size M3 M3.5 M4 M5 M6 M8 M10
dk 5.6 6.5 7.5 9.2 11 14.5 18
k 1.65 1.93 2.2 2.5 3 4 5
L 6-22 8-35 8-25 8-30 10-35 14-40 18-50
L1 25-30 28-35 28-40 35-50 40-50 45-55 55-60
:90กใ

  กกSlotted Flat Countersunk Head Machine Screws
ANSI/ASME B18.6.3  IFI I-6กก(F-8)
inches
Thread size 5 6 8 10 12 1/4 5/16 3/8 7/16
dk 0.252 0.279 0.332 0.385 0.438 0.507 0.635 0.762 0.812
k 0.075 0.083 0.100 0.116 0.132 0.153 0.191 0.230 0.223
L 1/4-1 1/4-2 5/16-21/2 3/8-21/2 1/2-4 1/2-4 5/8-4 3/4-4 3/4-4
:80กใ82กใ

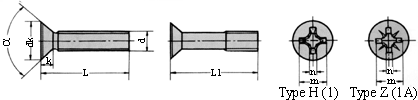

  กกCross Recessed Countersunk Flat Head Screw

DIN 965
mm
Thread size M3 M3.5 M4 M5 M6 M8 M10
dk 5.6 6.5 7.5 9.2 11 14.5 18
k 1.65 1.93 2.2 2.5 3 4 5

CROSS
RECESS

(Type H)m 2.9 3.9 4.4 4.6 6.6 8.7 9.6
(Type Z)m 2.8 3.7 4 4.4 6.1 8.5 9.4
No. 1 2 2 2 3 4 4
L 6-22 8-25 8-25 8-35 10-35 14-40 18-50
L1 25-30 28-35 28-40 40-50 40-50 45-55 55-60
:90กใ

  กกCross Recessed Flat Countersunk Head Machine Screws
ANSI/ASME B18.6.3  IFI I-7กก(F-9)
inches
Thread size 5 6 8 10 12 1/4 5/16 3/8 7/16
dk 0.252 0.279 0.332 0.385 0.438 0.507 0.635 0.762 0.812
k 0.075 0.083 0.100 0.116 0.132 0.153 0.191 0.230 0.223
CROSS
RECESS		 (Type 1)m 0.141 0.161 0.176 0.191 0.255 0.270 0.352 0.380 0.396
(Type 1A)m 0.141 0.161 0.176 0.191 0.255 0.270 0.352 0.380 0.396
No. 2 2 2 2 3 3 4 4 4
L 1/4-1 1/4-2 5/16-21/2 3/8-21/2 1/2-4 1/2-4 5/8-4 3/4-4 3/4-4
:80กใ82กใ
