Slotted
Cheese Head Screws |
| DIN 84 |
| |
| mm |
| Thread
size |
M3 |
M3.5 |
M4 |
M5 |
M6 |
M8 |
M10 |
| dk |
5.5 |
6 |
7 |
8.5 |
10 |
13 |
16 |
| k |
2 |
2.4 |
2.6 |
3.3 |
3.9 |
5 |
6 |
| L |
6-22 |
8-25 |
8-25 |
8-30 |
10-35 |
14-40 |
18-50 |
| L1 |
25-30 |
28-35 |
28-40 |
35-50 |
40-50 |
45-55 |
55-60 |
|
| |
|

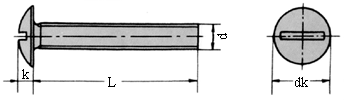

Slotted
Truss Head Machine Screws |
| ANSI/ASME
B18.6.3 1972 IFI I-26 (F-28) |
| |
| inches |
| Thread
size |
5 |
6 |
8 |
10 |
12 |
1/4 |
5/16 |
3/8 |
7/16 |
| dk |
0.289 |
0.321 |
0.384 |
0.448 |
0.511 |
0.573 |
0.698 |
0.823 |
0.948 |
| k |
0.078 |
0.086 |
0.102 |
0.118 |
0.134 |
0.150 |
0.183 |
0.215 |
0.248 |
| L |
1/2-2 |
1/2-21/2 |
1/2-21/2 |
5/8-21/2 |
3/4-4 |
7/8-4 |
1-4 |
11/4-4 |
11/4-4 |
|
| |
|

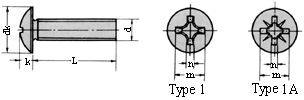

Cross
Recessed Truss Head Machine Screws |
| ANSI/ASME
B18.6.3 1972 IFI I-27 (F-29) |
| |
| inches |
| Thread
size |
5 |
6 |
8 |
10 |
12 |
1/4 |
5/16 |
3/8 |
7/16 |
| dk |
0.289 |
0.321 |
0.384 |
0.448 |
0.511 |
0.573 |
0.698 |
0.823 |
0.848 |
| k |
0.078 |
0.086 |
0.102 |
0.118 |
0.134 |
0.150 |
0.183 |
0.215 |
0.248 |
|
CROSS
RECESS |
(Type
1)m |
0.115 |
0.145 |
0.160 |
0.175 |
0.235 |
0.250 |
0.339 |
0.370 |
0.401 |
| (Type
1A)m |
0.111 |
0.135 |
0.149 |
0.165 |
0.221 |
0.235 |
0.320 |
0.351 |
0.381 |
| No. |
1 |
2 |
2 |
2 |
3 |
3 |
4 |
4 |
4 |
| L |
1/2-2 |
1/2-21/2 |
1/2-21/2 |
5/8-21/2 |
3/4-4 |
7/8-4 |
1-4 |
11/4-4 |
11/4-4 |
|
