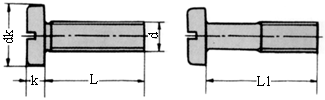

| Slotted
Pan Head Screws |
| DIN
85 |
| mm |
| Thread
size |
M3 |
M3.5 |
M4 |
M5 |
M6 |
M8 |
M10 |
| dk |
6 |
7 |
8 |
10 |
12 |
16 |
20 |
| k |
1.8 |
2.1 |
2.4 |
3 |
3.6 |
4.8 |
6 |
| L |
6-22 |
6-22 |
6-25 |
6-28 |
8-35 |
12-40 |
16-45 |
| L1 |
25-30 |
25-35 |
28-40 |
30-50 |
40-50 |
45-55 |
50-60 |
|
| |
|
Slotted
Pan Head Machine Screws |
| ANSI/ASME
B18.6.3 1972 IFI I-22 (F-24) |
| inches |
| Thread
size |
5 |
6 |
8 |
10 |
12 |
1/4 |
5/16 |
3/8 |
7/16 |
| dk |
0.245 |
0.270 |
0.322 |
0.373 |
0.425 |
0.492 |
0.615 |
0.740 |
0.863 |
| k |
0.075 |
0.082 |
0.096 |
0.110 |
0.125 |
0.144 |
0.178 |
0.212 |
0.247 |
| L |
1/2-11/4 |
1/2-11/4 |
1/2-11/4 |
5/8-2 |
3/4-21/4 |
7/8-21/4 |
1-31/4 |
11/4-3 |
11/4-3 |
|
| |
| |
|
Cross Recessed Raised Cheese Head Screws |
| DIN
7985 |
| mm |
| Thread
size |
M3 |
M3.5 |
M4 |
M5 |
M6 |
M8 |
M10 |
| dk |
6 |
7 |
8 |
10 |
12 |
16 |
20 |
| k |
2.4 |
2.7 |
3.1 |
3.8 |
4.6 |
6 |
7.5 |
|
CROSS
RECESS |
(Type
H)m |
3.1 |
4.2 |
4.6 |
5.3 |
6.8 |
9 |
10.2 |
| (Type
Z)m |
3 |
4 |
4.3 |
5 |
6.7 |
8.8 |
9.9 |
| No. |
1 |
2 |
2 |
2 |
3 |
4 |
4 |
| L |
6-20 |
7-22 |
8-25 |
10-28 |
12-35 |
16-35 |
15-45 |
| L1 |
25-30 |
25-35 |
28-40 |
30-50 |
40-50 |
40-50 |
50-60 |
|
| |
|
Cross Recessed Pan Head Machine Screws |
| ANSI/ASME
B18.6.3 1972 IFI I-23 (F-25) |
| inches |
| Thread
size |
5 |
6 |
8 |
10 |
12 |
1/4 |
5/16 |
3/8 |
7/16 |
| dk |
0.245 |
0.270 |
0.322 |
0.373 |
0.425 |
0.492 |
0.615 |
0.740 |
0.863 |
| k |
0.075 |
0.082 |
0.096 |
0.110 |
0.125 |
0.144 |
0.178 |
0.212 |
0.247 |
|
CROSS
RECESS |
(Type
1)m |
0.145 |
0.153 |
0.169 |
0.186 |
0.246 |
0.268 |
0.337 |
0.376 |
0.400 |
| (Type
1A)m |
0.141 |
0.149 |
0.164 |
0.180 |
0.241 |
0.260 |
0.328 |
0.364 |
0.386 |
| No. |
2 |
2 |
2 |
2 |
3 |
3 |
4 |
4 |
4 |
| L |
1/2-2 |
1/2-21/2 |
1/2-21/2 |
5/8-21/2 |
3/4-4 |
7/8-4 |
1-4 |
11/4-3 |
11/4-3 |
|
