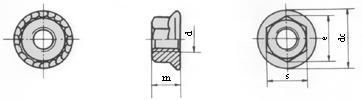

Hexagon Nuts with Flange
DIN 6923
mm
Thread size
M4
M5
M6
M8
M10
M12
M14
M16
M20
m
4.5
5
6
8
10
12
14
16
20
s
7
8
10
13
15
18
21
24
30
dc
10
11.8
14.2
17.9
21.8
26
29.9
34.5
42.8
Hex Flange Nuts
ANSI/ASME B18.2.2 1986
IFI D-21
inches
Thread size
10
12
1/4
5/16
3/8
7/16
1/2
9/16
5/8
3/4
m
0.219
0.236
0.236
0.283
0.347
0.395
0.458
0.506
0.569
0.675
s
0.365
0.428
0.428
0.489
0.551
0.675
0.736
0.861
0.922
1.083
dc
0.500
0.594
0.594
0.680
0.750
0.937
1.031
1.188
1.281
1.500
Hex Flange Nuts
JIS B1190
mm
Thread size
M4
M5
M6
M8
M10
M12
M16
m
4.2
5
6
8
10
11.5
15
s
7
8
10
12
14
17
22
dc
10.5
12
14
17.5
21
25
33
